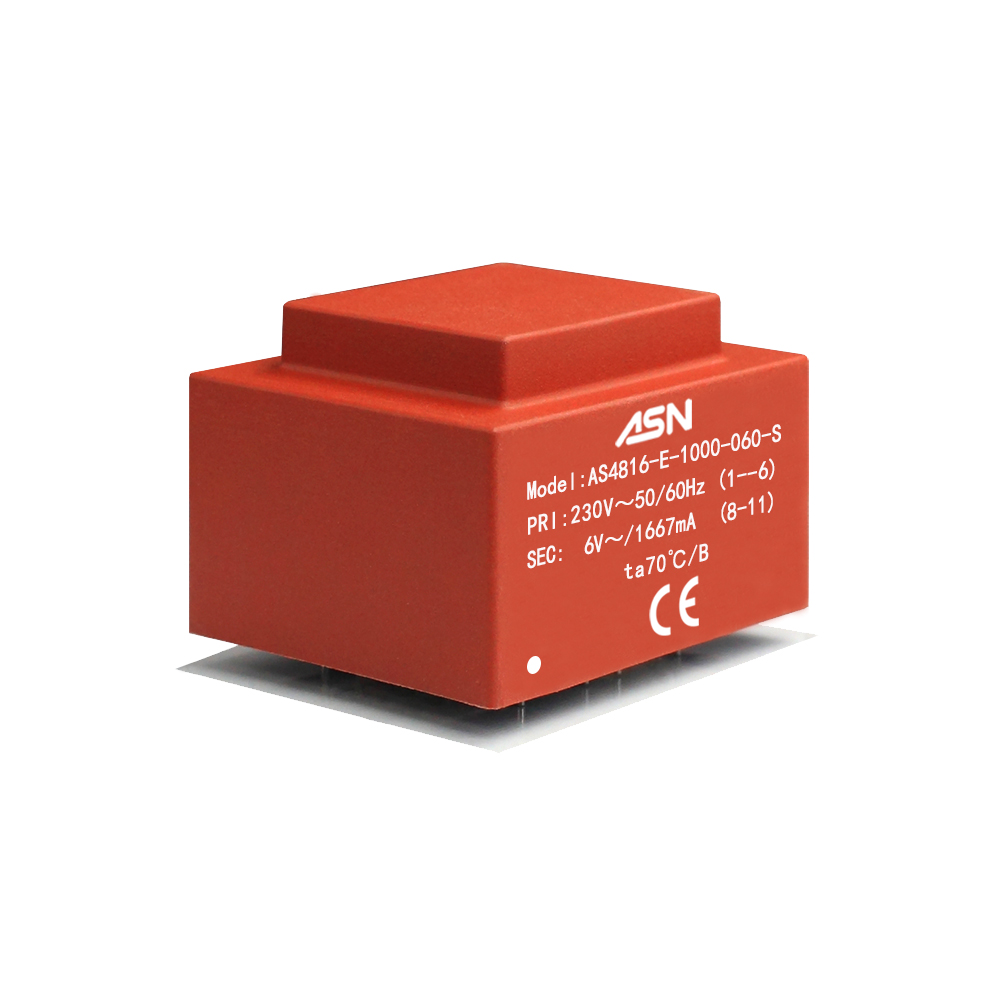

AS4818 11.0VA Series

Power：11.0VA

Featrures

Product Parameter

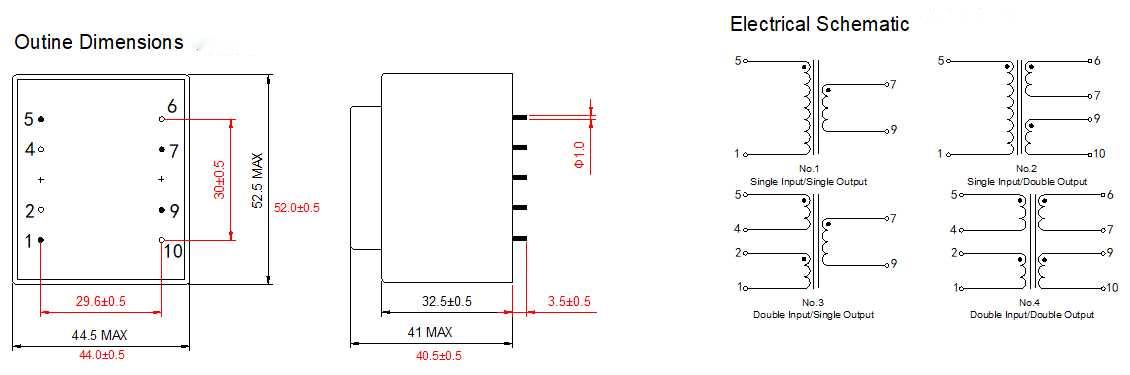

PART NO	Primary [V]	No-Load Voltage [V]	Secondary [V/mA]	Pin	Schematic No.	Temperature Class	Certificates
							Certificates
							VDE	UL	CQC	CE
AS4818-E-1100-060-S	230	7.6	6/1833	1+5/7+9	1	ta70℃/B				●
AS4818-E-1100-090-S	230	11.5	9/1222	1+5/7+9	1	ta70℃/B				●
AS4818-E-1100-120-S	230	15.5	12/917	1+5/7+9	1	ta70℃/B				●
AS4818-E-1100-150-S	230	19.0	15/733	1+5/7+9	1	ta70℃/B				●
AS4818-E-1100-180-S	230	22.8	18/611	1+5/7+9	1	ta70℃/B				●
AS4818-E-1100-240-S	230	30.0	24/458	1+5/7+9	1	ta70℃/B				●
AS4818-E-1100-060-D	230	2x8.0	2x6/917	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-E-1100-075-D	230	2x10.0	2x7.5/733	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-E-1100-090-D	230	2x11.5	2x9/611	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-E-1100-120-D	230	2x15.5	2x12/458	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-E-1100-150-D	230	2x19.0	2x15/367	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-E-1100-180-D	230	2x22.8	2x18/306	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-E-1100-240-D	230	2x30.0	2x24/229	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-060-S	115	7.6	6/1833	1+5/7+9	1	ta70℃/B				●
AS4818-U-1100-090-S	115	11.5	9/1222	1+5/7+9	1	ta70℃/B				●
AS4818-U-1100-120-S	115	15.5	12/917	1+5/7+9	1	ta70℃/B				●
AS4818-U-1100-150-S	115	19.0	15/733	1+5/7+9	1	ta70℃/B				●
AS4818-U-1100-180-S	115	22.8	18/611	1+5/7+9	1	ta70℃/B				●
AS4818-U-1100-240-S	115	30.0	24/458	1+5/7+9	1	ta70℃/B				●
AS4818-U-1100-060-D	115	2x8.0	2x6/917	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-075-D	115	2x10.0	2x7.5/733	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-090-D	115	2x11.5	2x9/611	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-120-D	115	2x15.5	2x12/458	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-150-D	115	2x19.0	2x15/367	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-180-D	115	2x22.8	2x18/306	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U-1100-240-D	115	2x30.0	2x24/229	1+5/6+7-9+10	2	ta70℃/B				●
AS4818-U2-1100-060-S	2x115	7.6	6/1833	1+2-4+5/7+9	3	ta70℃/B				●
AS4818-U2-1100-090-S	2x115	11.5	9/1222	1+2-4+5/7+9	3	ta70℃/B				●
AS4818-U2-1100-120-S	2x115	15.5	12/917	1+2-4+5/7+9	3	ta70℃/B				●
AS4818-U2-1100-150-S	2x115	19.0	15/733	1+2-4+5/7+9	3	ta70℃/B				●
AS4818-U2-1100-180-S	2x115	22.8	18/611	1+2-4+5/7+9	3	ta70℃/B				●
AS4818-U2-1100-240-S	2x115	30.0	24/458	1+2-4+5/7+9	3	ta70℃/B				●
AS4818-U2-1100-060-D	2x115	2x8.0	2x6/917	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS4818-U2-1100-090-D	2x115	2x11.5	2x9/611	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS4818-U2-1100-120-D	2x115	2x15.5	2x12/458	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS4818-U2-1100-150-D	2x115	2x19.0	2x15/367	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS4818-U2-1100-180-D	2x115	2x22.8	2x18/306	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS4818-U2-1100-240-D	2x115	2x30.0	2x24/229	1+2-4+5/6+7-9+10	4	ta70℃/B				●
