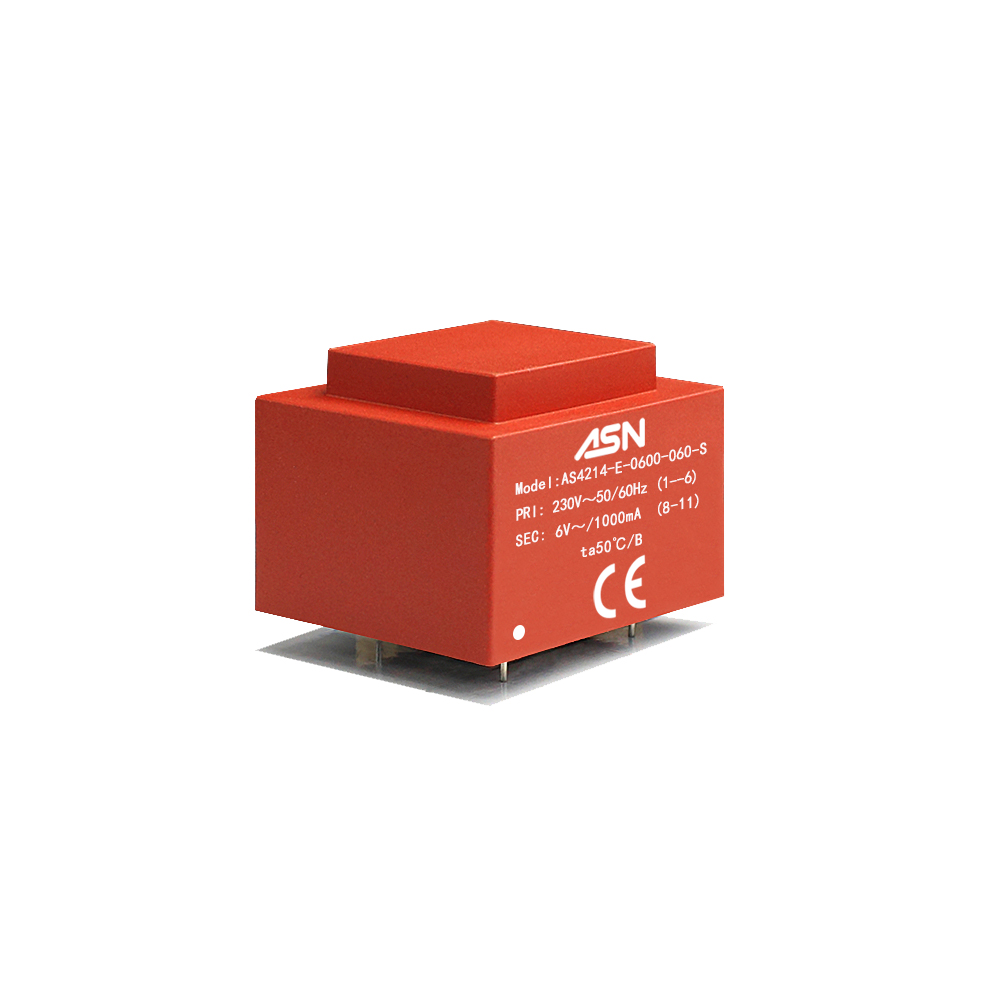

AS4214 6.0VA (TA50) Series

AS4214 6.0VA (TA50) Series

Power：6.0VA

Featrures

规格书 确认版english(1)_35.png

Product Parameter

PART NOPrimary                         [V]No-Load Voltage                  [V]Secondary                 [V/mA]PinSchematic No.Temperature ClassCertificates






   VDEULCQCCE
AS4214-E-0600-060-S2308.46/10001+6/8+111ta50℃/B


●
AS4214-E-0600-090-S23012.59/6671+6/8+111ta50℃/B


●
AS4214-E-0600-120-S23016.712/5001+6/8+111ta50℃/B


●
AS4214-E-0600-150-S23020.815/4001+6/8+111ta50℃/B


●
AS4214-E-0600-180-S23025.0 18/3331+6/8+111ta50℃/B


●
AS4214-E-0600-240-S23033.3 24/2501+6/8+111ta50℃/B


●
AS4214-E-0600-060-D2302x8.42x6/5001+6/7+8-11+122ta50℃/B


●
AS4214-E-0600-075-D2302x10.42x7.5/4001+6/7+8-11+122ta50℃/B


●
AS4214-E-0600-090-D2302x12.52x9/3331+6/7+8-11+122ta50℃/B


●
AS4214-E-0600-120-D2302x16.72x12/2501+6/7+8-11+122ta50℃/B


●
AS4214-E-0600-150-D2302x20.82x15/2001+6/7+8-11+122ta50℃/B


●
AS4214-E-0600-180-D2302x25.02x18/1671+6/7+8-11+122ta50℃/B


●
AS4214-E-0600-240-D2302x33.32x24/1251+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-060-S1158.4 6/10001+6/8+111ta50℃/B


●
AS4214-U-0600-090-S11512.5 9/6671+6/8+111ta50℃/B


●
AS4214-U-0600-120-S11516.7 12/5001+6/8+111ta50℃/B


●
AS4214-U-0600-150-S11520.8 15/4001+6/8+111ta50℃/B


●
AS4214-U-0600-180-S11525.0 18/3331+6/8+111ta50℃/B


●
AS4214-U-0600-240-S11533.3 24/2501+6/8+111ta50℃/B


●
AS4214-U-0600-060-D1152x8.42x6/5001+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-075-D1152x10.42x7.5/4001+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-090-D1152x12.52x9/3331+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-120-D1152x16.72x12/2501+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-150-D1152x20.82x15/2001+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-180-D1152x25.02x18/1671+6/7+8-11+122ta50℃/B


●
AS4214-U-0600-240-D1152x33.32x24/1251+6/7+8-11+122ta50℃/B


●
AS4214-U2-0600-060-S2x1158.4 6/10001+3-4+6/8+113ta50℃/B


●
AS4214-U2-0600-090-S2x11512.5 9/6671+3-4+6/8+113ta50℃/B


●
AS4214-U2-0600-120-S2x11516.7 12/5001+3-4+6/8+113ta50℃/B


●
AS4214-U2-0600-150-S2x11520.8 15/4001+3-4+6/8+113ta50℃/B


●
AS4214-U2-0600-180-S2x11525.0 18/3331+3-4+6/8+113ta50℃/B


●
AS4214-U2-0600-240-S2x11533.324/2501+3-4+6/8+113ta50℃/B


●
AS4214-U2-0600-060-D2x1152x8.42x6/5001+3-4+6/7+8-11+124ta50℃/B


●
AS4214-U2-0600-090-D2x1152x12.52x9/3331+3-4+6/7+8-11+124ta50℃/B


●
AS4214-U2-0600-120-D2x1152x16.72x12/2501+3-4+6/7+8-11+124ta50℃/B


●
AS4214-U2-0600-150-D2x1152x20.82x15/2001+3-4+6/7+8-11+124ta50℃/B


●
AS4214-U2-0600-180-D2x1152x25.02x18/1671+3-4+6/7+8-11+124ta50℃/B


●
AS4214-U2-0600-240-D2x1152x33.32x24/1251+3-4+6/7+8-11+124ta50℃/B


●
