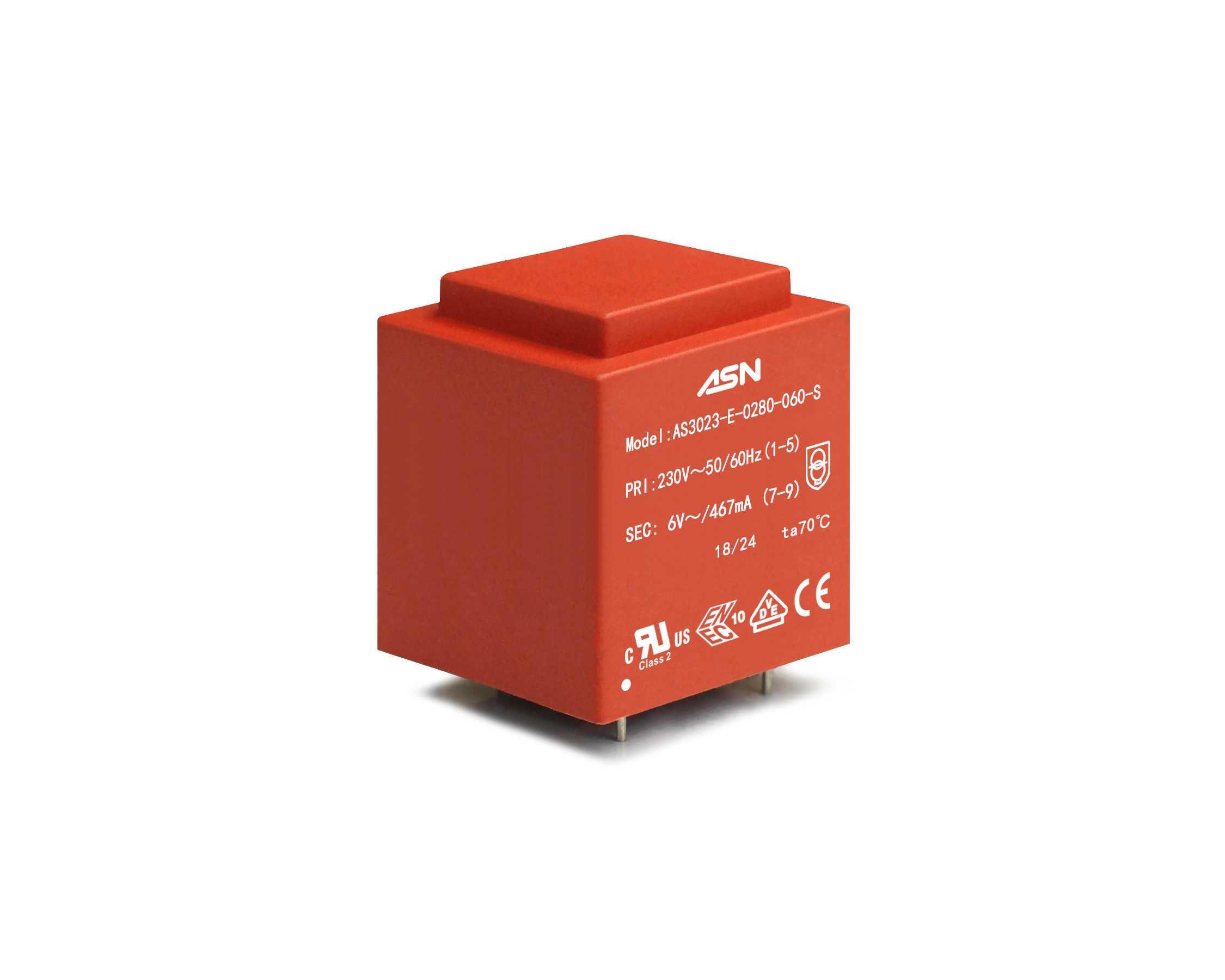

AS3023 3.0VA (TA50) Series

AS3023 3.0VA (TA50) Series

Power：3.0VA

Featrures

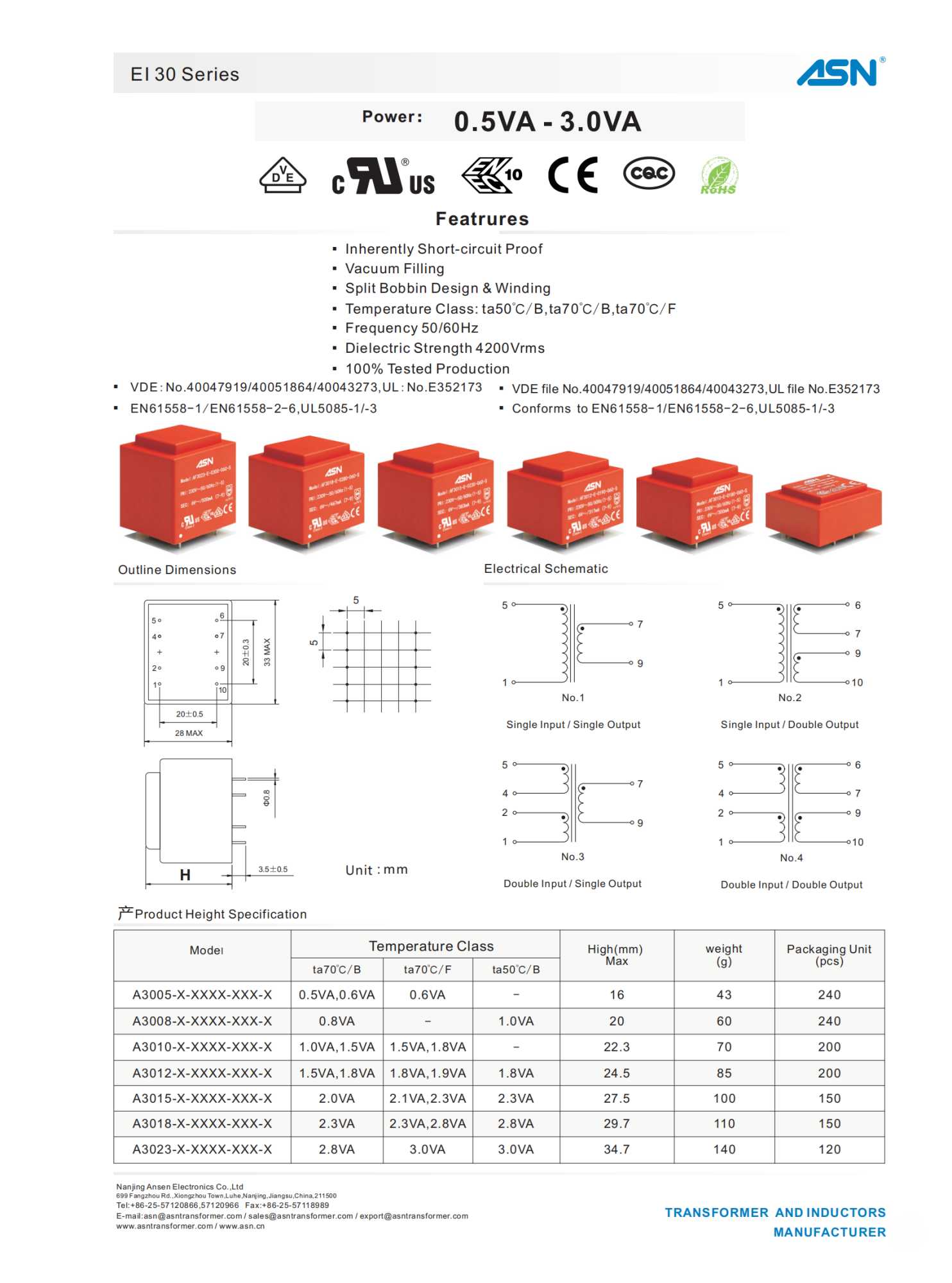

规格书 确认版english(1)_12.png

Product Parameter

PART NOPrimary                         [V]No-Load Voltage                  [V]Secondary                 [V/mA]PinSchematic No.Temperature ClassCertificates








VDEULCQCCE
AS3023-E-0300-060-S23010.8 6/5001+5/7+91ta50℃/B


●
AS3023-E-0300-090-S23016.0 9/3331+5/7+91ta50℃/B


●
AS3023-E-0300-120-S23021.6 12/2501+5/7+91ta50℃/B


●
AS3023-E-0300-150-S23026.9 15/2001+5/7+91ta50℃/B


●
AS3023-E-0300-180-S23031.5 18/1671+5/7+91ta50℃/B


●
AS3023-E-0300-240-S23042.0 24/1251+5/7+91ta50℃/B


●
AS3023-E-0300-060-D2302x10.82x6/2501+5/6+7-9+102ta50℃/B


●
AS3023-E-0300-075-D2302x13.52x7.5/2001+5/6+7-9+102ta50℃/B


●
AS3023-E-0300-090-D2302x16.02x9/1671+5/6+7-9+102ta50℃/B


●
AS3023-E-0300-120-D2302x21.62x12/1251+5/6+7-9+102ta50℃/B


●
AS3023-E-0300-150-D2302x25.02x15/1001+5/6+7-9+102ta50℃/B


●
AS3023-E-0300-180-D2302x31.52x18/831+5/6+7-9+102ta50℃/B


●
AS3023-E-0300-240-D2302x42.02x24/631+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-060-S11510.8 6/5001+5/7+91ta50℃/B


●
AS3023-U-0300-090-S11516.0 9/3331+5/7+91ta50℃/B


●
AS3023-U-0300-120-S11521.6 12/2501+5/7+91ta50℃/B


●
AS3023-U-0300-150-S11526.9 15/2001+5/7+91ta50℃/B


●
AS3023-U-0300-180-S11531.5 18/1671+5/7+91ta50℃/B


●
AS3023-U-0300-240-S11542.0 24/1251+5/7+91ta50℃/B


●
AS3023-U-0300-060-D1152x10.82x6/2501+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-075-D1152x13.52x7.5/2001+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-090-D1152x16.02x9/1671+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-120-D1152x21.62x12/1251+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-150-D1152x25.02x15/1001+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-180-D1152x31.52x18/831+5/6+7-9+102ta50℃/B


●
AS3023-U-0300-240-D1152x42.02x24/631+5/6+7-9+102ta50℃/B


●
AS3023-U2-0300-060-S2x11510.8 6/5001+2-4+5/7+93ta50℃/B


●
AS3023-U2-0300-090-S2x11516.0 9/3331+2-4+5/7+93ta50℃/B


●
AS3023-U2-0300-120-S2x11521.6 12/2501+2-4+5/7+93ta50℃/B


●
AS3023-U2-0300-150-S2x11526.9 15/2001+2-4+5/7+93ta50℃/B


●
AS3023-U2-0300-180-S2x11531.5 18/1671+2-4+5/7+93ta50℃/B


●
AS3023-U2-0300-240-S2x11542.0 24/1251+2-4+5/7+93ta50℃/B


●
AS3023-U2-0300-060-D2x1152x10.82x6/2501+2-4+5/6+7-9+104ta50℃/B


●
AS3023-U2-0300-090-D2x1152x16.02x9/1671+2-4+5/6+7-9+104ta50℃/B


●
AS3023-U2-0300-120-D2x1152x21.62x12/1251+2-4+5/6+7-9+104ta50℃/B


●
AS3023-U2-0300-150-D2x1152x25.02x15/1001+2-4+5/6+7-9+104ta50℃/B


●
AS3023-U2-0300-180-D2x1152x31.52x18/831+2-4+5/6+7-9+104ta50℃/B


●
AS3023-U2-0300-240-D2x1152x42.02x24/631+2-4+5/6+7-9+104ta50℃/B


●
