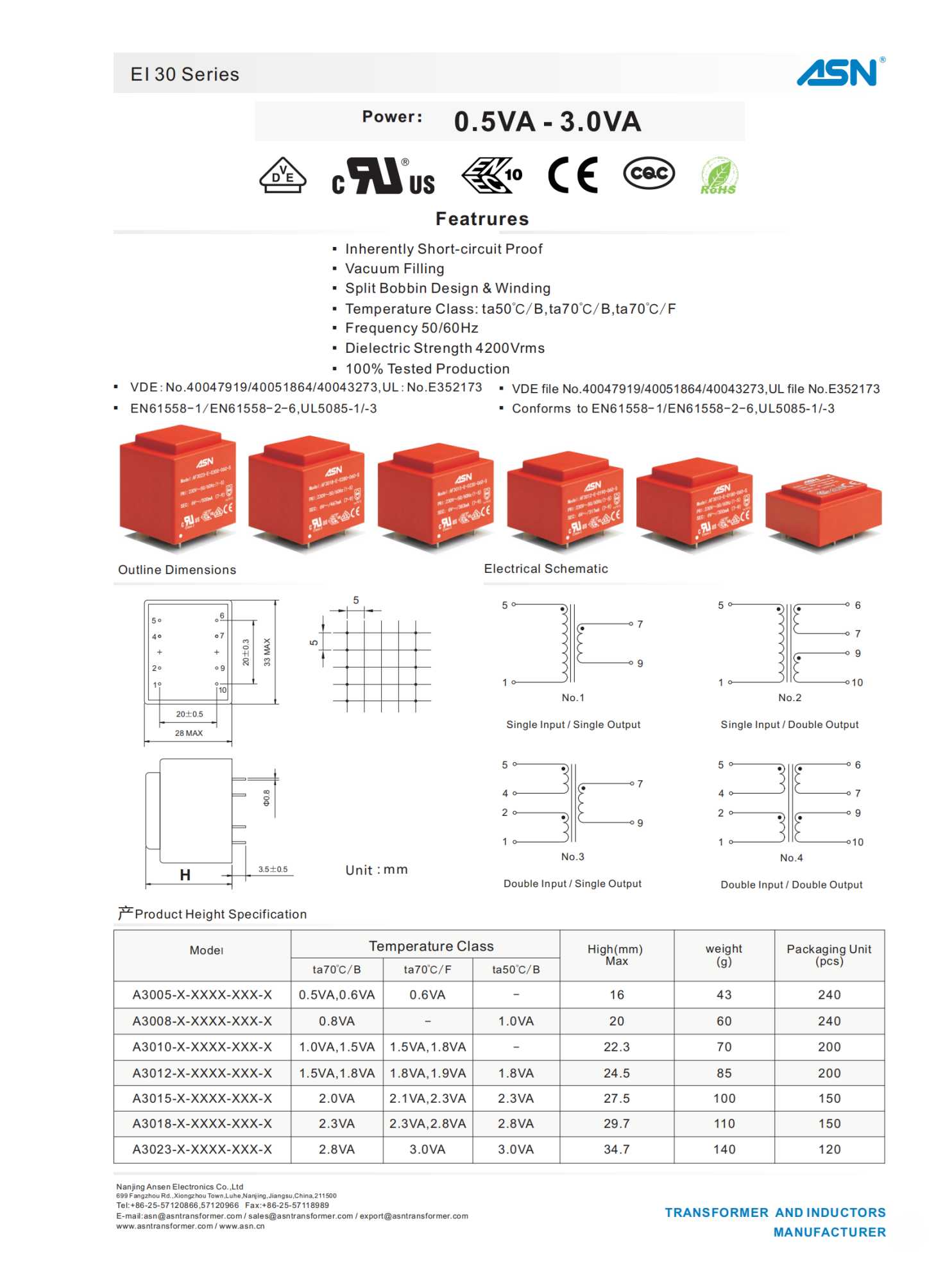

AS3018 2.3VA Series

Power：2.3VA

Featrures

Product Parameter

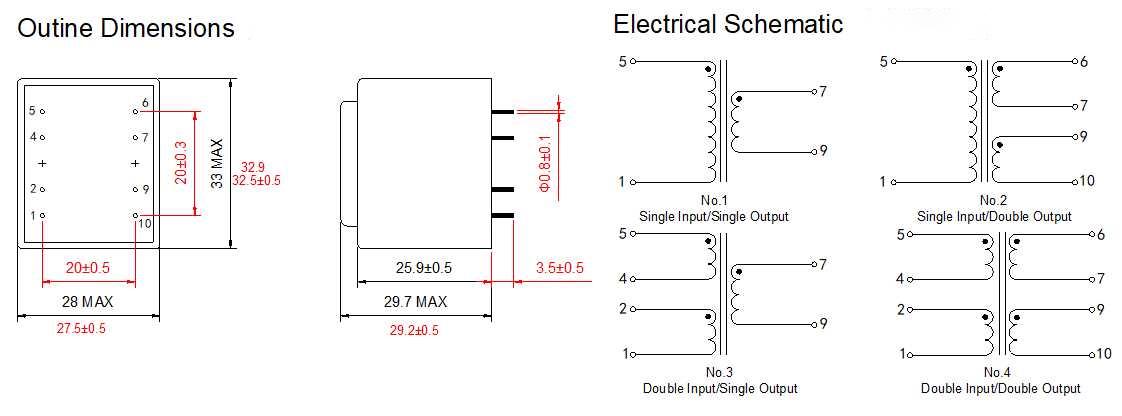

PART NO	Primary [V]	No-Load Voltage [V]	Secondary [V/mA]	Pin	Schematic No.	Temperature Class	Certificates
							Certificates
							VDE	UL	CQC	CE
AS3018-E-0230-060-S	230	10.5	6/383	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3018-E-0230-090-S	230	15.7	9/256	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3018-E-0230-120-S	230	21.0	12/192	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3018-E-0230-150-S	230	25.5	15/153	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3018-E-0230-180-S	230	31.5	18/128	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3018-E-0230-240-S	230	42.0	24/96	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3018-E-0230-060-D	230	2x10.5	2x6/192	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3018-E-0230-075-D	230	2x13.0	2x7.5/153	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3018-E-0230-090-D	230	2x15.7	2x9/128	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3018-E-0230-120-D	230	2x21.0	2x12/96	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3018-E-0230-150-D	230	2x25.0	2x15/77	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3018-E-0230-180-D	230	2x31.5	2x18/64	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-E-0230-240-D	230	2x42.0	2x24/48	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-060-S	115	10.5	6/383	1+5/7+9	1	ta70℃/B		●		●
AS3018-U-0230-090-S	115	15.7	9/256	1+5/7+9	1	ta70℃/B		●		●
AS3018-U-0230-120-S	115	21.0	12/192	1+5/7+9	1	ta70℃/B		●		●
AS3018-U-0230-150-S	115	25.5	15/153	1+5/7+9	1	ta70℃/B		●		●
AS3018-U-0230-180-S	115	31.5	18/128	1+5/7+9	1	ta70℃/B		●		●
AS3018-U-0230-240-S	115	42.0	24/96	1+5/7+9	1	ta70℃/B		●		●
AS3018-U-0230-060-D	115	2x10.5	2x6/192	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-075-D	115	2x13.0	2x7.5/153	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-090-D	115	2x15.7	2x9/128	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-120-D	115	2x21.0	2x12/96	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-150-D	115	2x25.0	2x15/77	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-180-D	115	2x31.5	2x18/64	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U-0230-240-D	115	2x42.0	2x24/48	1+5/6+7-9+10	2	ta70℃/B				●
AS3018-U2-0230-060-S	2x115	10.5	6/383	1+2-4+5/7+9	3	ta70℃/B				●
AS3018-U2-0230-090-S	2x115	15.7	9/256	1+2-4+5/7+9	3	ta70℃/B				●
AS3018-U2-0230-120-S	2x115	21.0	12/192	1+2-4+5/7+9	3	ta70℃/B				●
AS3018-U2-0230-150-S	2x115	25.5	15/153	1+2-4+5/7+9	3	ta70℃/B				●
AS3018-U2-0230-180-S	2x115	31.5	18/128	1+2-4+5/7+9	3	ta70℃/B				●
AS3018-U2-0230-240-S	2x115	42.0	24/96	1+2-4+5/7+9	3	ta70℃/B				●
AS3018-U2-0230-060-D	2x115	2x10.5	2x6/192	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3018-U2-0230-090-D	2x115	2x15.7	2x9/128	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3018-U2-0230-120-D	2x115	2x21.0	2x12/96	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3018-U2-0230-150-D	2x115	2x25.0	2x15/77	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3018-U2-0230-180-D	2x115	2x31.5	2x18/64	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3018-U2-0230-240-D	2x115	2x42.0	2x24/48	1+2-4+5/6+7-9+10	4	ta70℃/B				●
