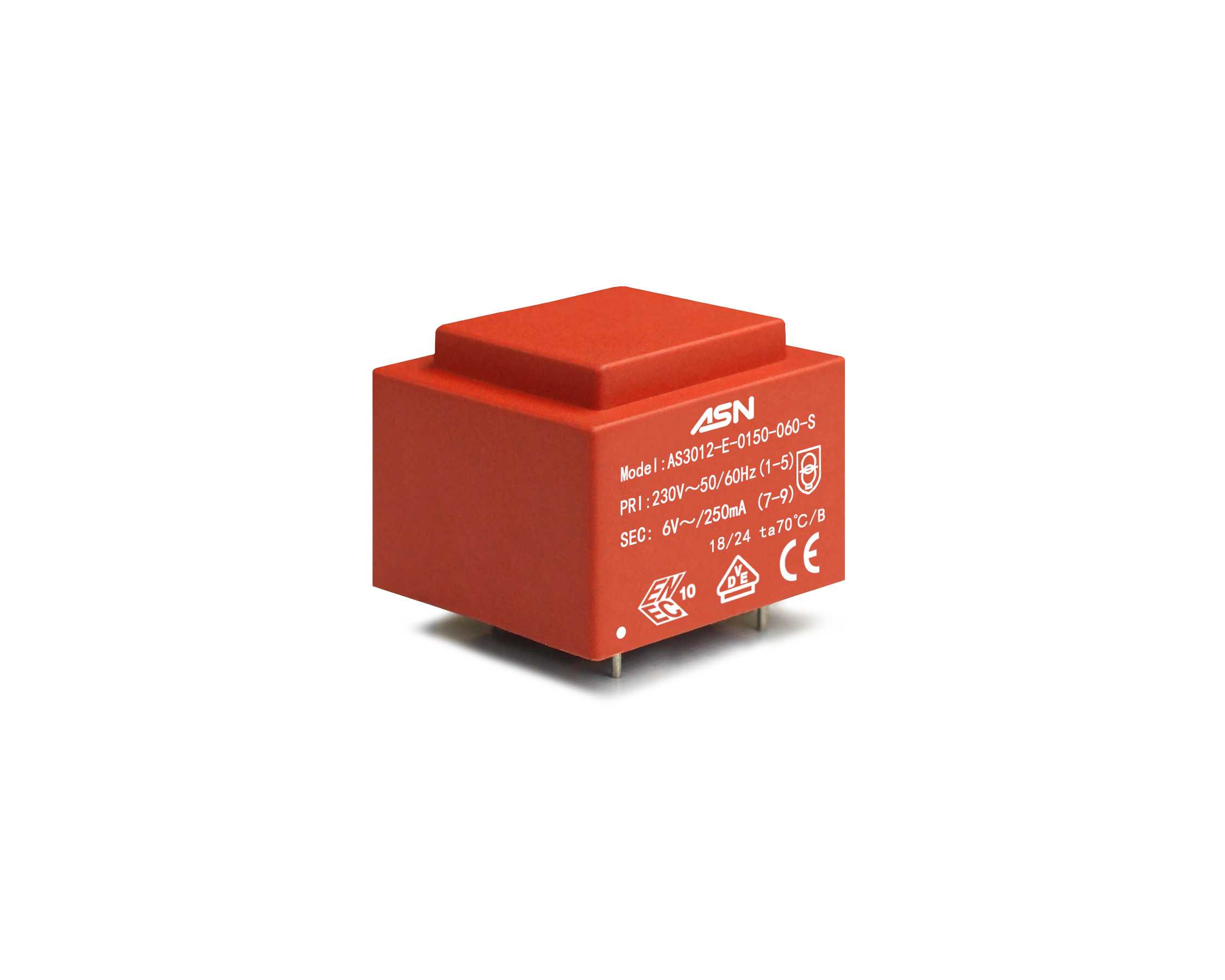

AS3012 1.5VA Series

AS3012 1.5VA Series

Power：1.2VA

Featrures

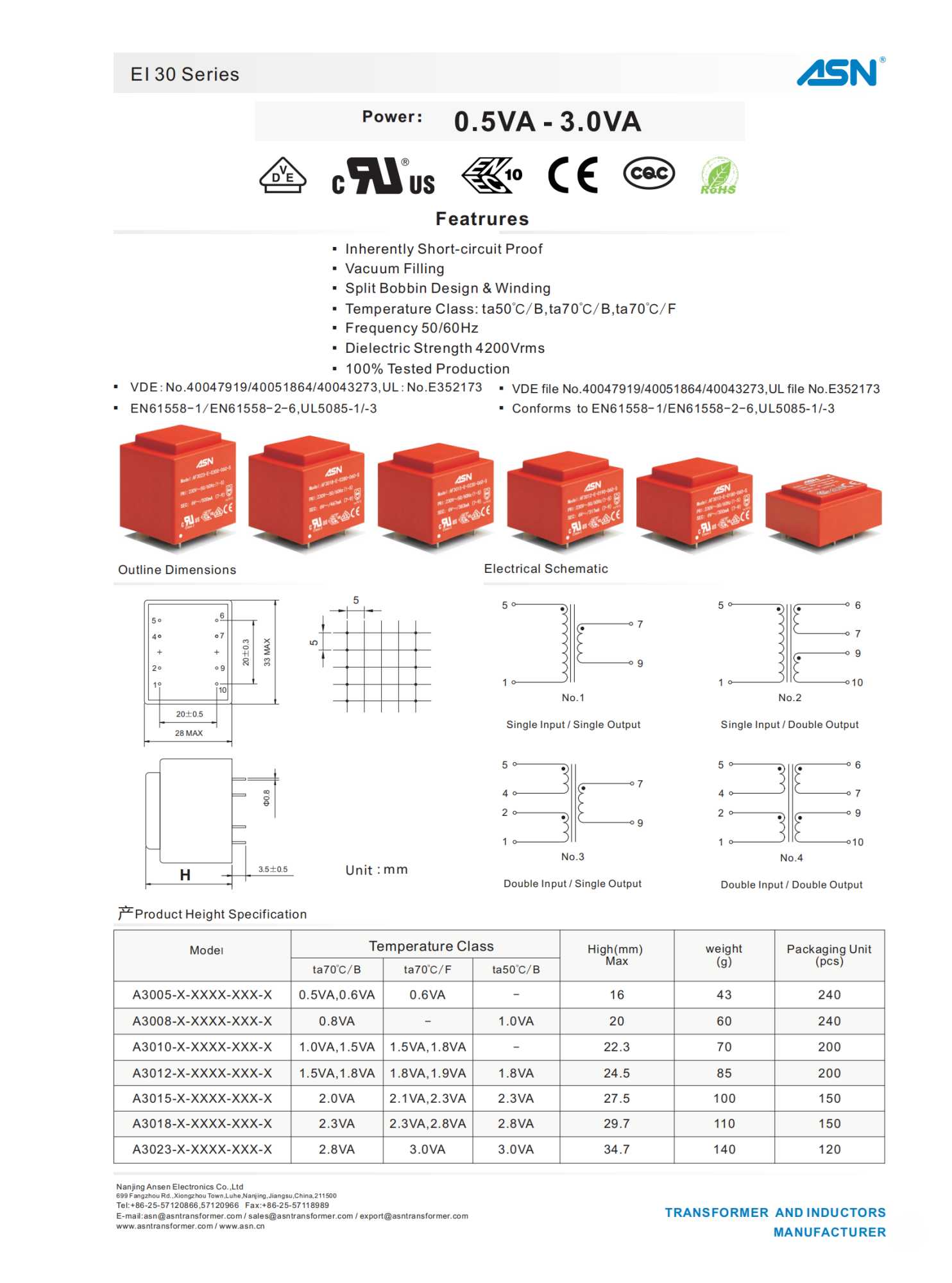

规格书 确认版english(1)_12.png

Product Parameter

PART NOPrimary                         [V]No-Load Voltage                  [V]Secondary                 [V/mA]PinSchematic No.Temperature ClassCertificates







  　VDEULCQCCE
AS3012-E-0150-060-S2308.8 6/2501+5/7+91ta70℃/B●●
●
AS3012-E-0150-090-S23013.0 9/1671+5/7+91ta70℃/B●●
●
AS3012-E-0150-120-S23017.5 12/1251+5/7+91ta70℃/B●●●●
AS3012-E-0150-150-S23022.0 15/1001+5/7+91ta70℃/B●●●●
AS3012-E-0150-180-S23025.5 18/831+5/7+91ta70℃/B●●
●
AS3012-E-0150-240-S23035.5 24/631+5/7+91ta70℃/B●●
●
AS3012-E-0150-060-D2302x8.82x6/1251+5/6+7-9+102ta70℃/B●

●
AS3012-E-0150-075-D2302x11.02x7.5/1001+5/6+7-9+102ta70℃/B●

●
AS3012-E-0150-090-D2302x13.02x9/831+5/6+7-9+102ta70℃/B●

●
AS3012-E-0150-120-D2302x17.52x12/631+5/6+7-9+102ta70℃/B●

●
AS3012-E-0150-150-D2302x22.02x15/501+5/6+7-9+102ta70℃/B●

●
AS3012-E-0150-180-D2302x25.52x18/421+5/6+7-9+102ta70℃/B


●
AS3012-E-0150-240-D2302x35.52x24/311+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-060-S1158.8 6/2501+5/7+91ta70℃/B
●
●
AS3012-U-0150-090-S11513.0 9/1671+5/7+91ta70℃/B
●
●
AS3012-U-0150-120-S11517.5 12/1251+5/7+91ta70℃/B
●●●
AS3012-U-0150-150-S11522.0 15/1001+5/7+91ta70℃/B
●
●
AS3012-U-0150-180-S11525.5 18/831+5/7+91ta70℃/B
●
●
AS3012-U-0150-240-S11535.5 24/631+5/7+91ta70℃/B
●
●
AS3012-U-0150-060-D1152x8.82x6/1251+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-075-D1152x11.02x7.5/1001+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-090-D1152x13.02x9/831+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-120-D1152x17.52x12/631+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-150-D1152x22.02x15/501+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-180-D1152x25.52x18/421+5/6+7-9+102ta70℃/B


●
AS3012-U-0150-240-D1152x35.52x24/311+5/6+7-9+102ta70℃/B


●
AS3012-U2-0150-060-S2x1158.8 6/2501+2-4+5/7+93ta70℃/B


●
AS3012-U2-0150-090-S2x11513.0 9/1671+2-4+5/7+93ta70℃/B


●
AS3012-U2-0150-120-S2x11517.5 12/1251+2-4+5/7+93ta70℃/B


●
AS3012-U2-0150-150-S2x11522.0 15/1001+2-4+5/7+93ta70℃/B


●
AS3012-U2-0150-180-S2x11525.5 18/831+2-4+5/7+93ta70℃/B


●
AS3012-U2-0150-240-S2x11535.5 24/631+2-4+5/7+93ta70℃/B


●
AS3012-U2-0150-060-D2x1152x8.82x6/1251+2-4+5/6+7-9+104ta70℃/B


●
AS3012-U2-0150-090-D2x1152x13.02x9/831+2-4+5/6+7-9+104ta70℃/B


●
AS3012-U2-0150-120-D2x1152x17.52x12/631+2-4+5/6+7-9+104ta70℃/B


●
AS3012-U2-0150-150-D2x1152x22.02x15/501+2-4+5/6+7-9+104ta70℃/B


●
AS3012-U2-0150-180-D2x1152x25.52x18/421+2-4+5/6+7-9+104ta70℃/B


●
AS3012-U2-0150-240-D2x1152x35.52x24/311+2-4+5/6+7-9+104ta70℃/B


●
