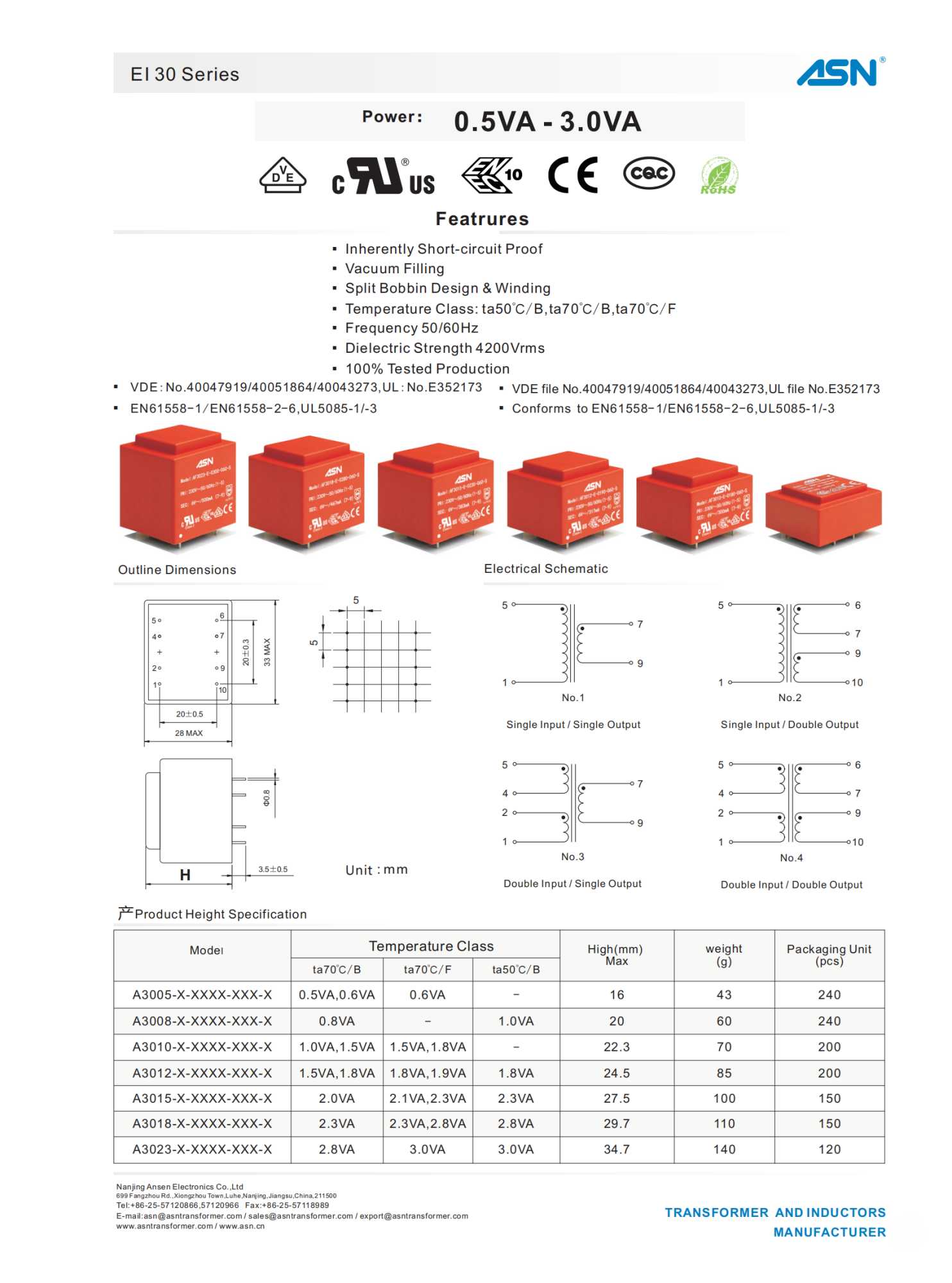

AS3010 1.5VA Series

Power：1.5va

Featrures

Product Parameter

PART NO	Primary [V]	No-Load Voltage [V]	Secondary [V/mA]	Pin	Schematic No.	Temperature Class	Certificates
							Certificates
							VDE	UL	CQC	CE
AS3010-E-0150-060-S	230	9.5	6/250	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-090-S	230	14.5	9/167	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-120-S	230	19.0	12/125	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-135-S	230	21.5	13.5/111	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-150-S	230	24.0	15/100	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-180-S	230	28.5	18/83	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-240-S	230	38.0	24/63	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0150-060-D	230	2x9.5	2x6/125	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3010-E-0150-075-D	230	2x11.8	2x7.5/100	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3010-E-0150-090-D	230	2x14.5	2x9/83	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3010-E-0150-120-D	230	2x19.0	2x12/63	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3010-E-0150-150-D	230	2x24.0	2x15/50	1+5/6+7-9+10	2	ta70℃/B	●		●	●
AS3010-E-0150-180-D	230	2x28.5	2x18/42	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-E-0150-240-D	230	2x38.0	2x24/31	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-060-S	115	9.5	6/250	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-090-S	115	14.5	9/167	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-100-S	115	16.0	10/150	1+5/7+9	1	ta70℃/B		●	●	●
AS3010-U-0150-120-S	115	19.0	12/125	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-135-S	115	21.5	13.5/111	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-150-S	115	24.0	15/100	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-180-S	115	28.5	18/83	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-240-S	115	38.0	24/63	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0150-060-D	115	2x9.5	2x6/125	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-075-D	115	2x11.8	2x7.5/100	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-090-D	115	2x14.5	2x9/83	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-120-D	115	2x19.0	2x12/63	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-150-D	115	2x24.0	2x15/50	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-180-D	115	2x28.5	2x18/42	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0150-240-D	115	2x38.0	2x24/31	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U2-0150-060-S	2x115	9.5	6/250	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0150-090-S	2x115	14.5	9/167	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0150-120-S	2x115	19.0	12/125	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0150-150-S	2x115	24.0	15/100	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0150-180-S	2x115	28.5	18/83	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0150-240-S	2x115	38.0	24/63	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0150-060-D	2x115	2x9.5	2x6/125	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0150-090-D	2x115	2x14.5	2x9/83	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0150-120-D	2x115	2x19.0	2x12/63	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0150-150-D	2x115	2x24.0	2x15/50	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0150-180-D	2x115	2x28.5	2x18/42	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0150-240-D	2x115	2x38.0	2x24/31	1+2-4+5/6+7-9+10	4	ta70℃/B				●
