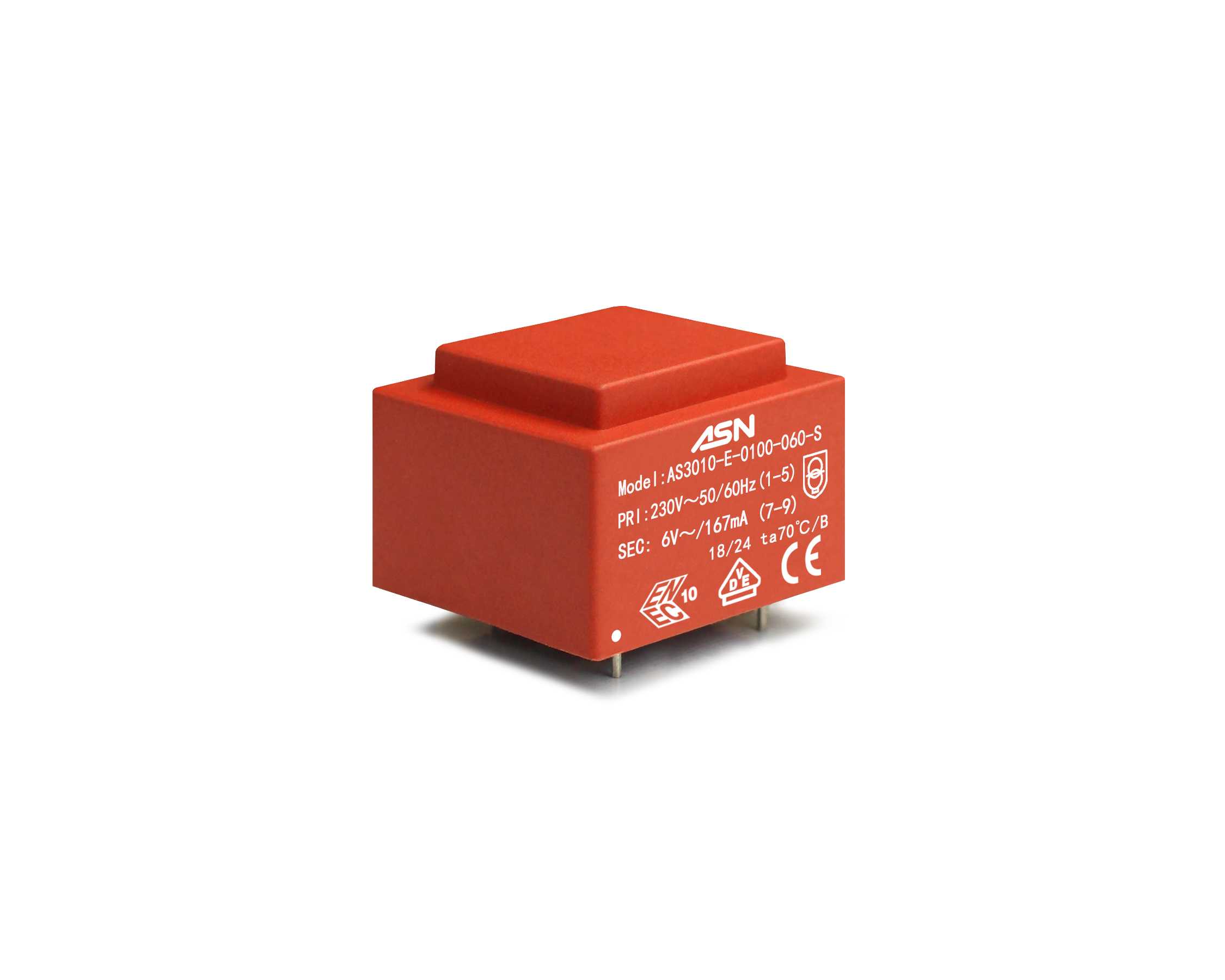

AS3010 1.0VA Series

Power：1.0VA

Featrures

Product Parameter

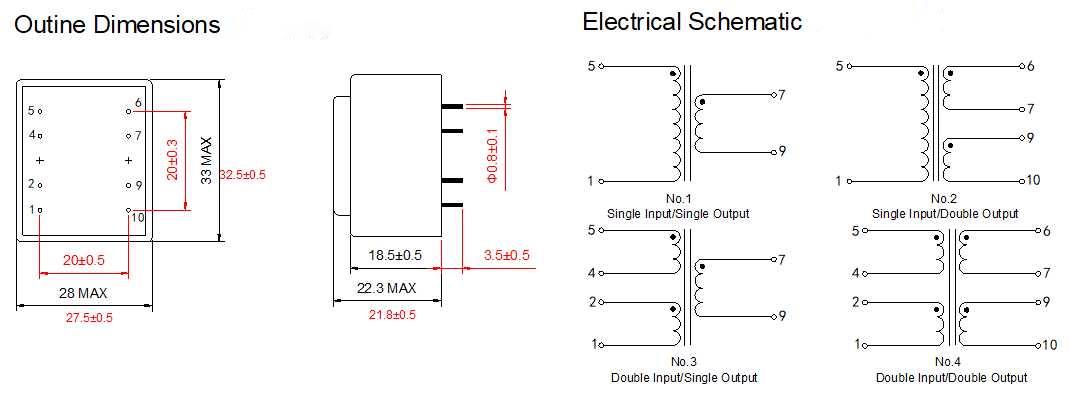

PART NO	Primary [V]	No-Load Voltage [V]	Secondary [V/mA]	Pin	Schematic No.	Temperature Class	Certificates
							Certificates
							VDE	UL	CQC	CE
AS3010-E-0100-060-S	230	8.2	6/167	1+5/7+9	1	ta70℃/B	●	●		●
AS3010-E-0100-090-S	230	12.3	9/111	1+5/7+9	1	ta70℃/B	●	●		●
AS3010-E-0100-100-S	230	13.5	10/100	1+5/7+9	1	ta70℃/B		●	●	●
AS3010-E-0100-120-S	230	16.4	12/83	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3010-E-0100-135-S	230	18.5	13.5/74	1+5/7+9	1	ta70℃/B		●		●
AS3010-E-0100-150-S	230	20.5	15/67	1+5/7+9	1	ta70℃/B	●	●		●
AS3010-E-0100-180-S	230	24.6	18/56	1+5/7+9	1	ta70℃/B	●	●		●
AS3010-E-0100-240-S	230	32.8	24/42	1+5/7+9	1	ta70℃/B	●	●		●
AS3010-E-0100-060-D	230	2x8.2	2x6/83	1+5/6+7-9+10	2	ta70℃/B	●			●
AS3010-E-0100-075-D	230	2x10.3	2x7.5/67	1+5/6+7-9+10	2	ta70℃/B	●			●
AS3010-E-0100-090-D	230	2x12.3	2x9/56	1+5/6+7-9+10	2	ta70℃/B	●			●
AS3010-E-0100-120-D	230	2x16.4	2x12/42	1+5/6+7-9+10	2	ta70℃/B	●			●
AS3010-E-0100-150-D	230	2x20.5	2x15/33	1+5/6+7-9+10	2	ta70℃/B	●			●
AS3010-E-0100-180-D	230	2x24.6	2x18/28	1+5/6+7-9+10	2	ta70℃/B	●			●
AS3010-E-0100-240-D	230	2x32.8	2x24/21	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-060-S	115	8.2	6/167	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0100-090-S	115	12.3	9/111	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0100-120-S	115	16.4	12/83	1+5/7+9	1	ta70℃/B		●	●	●
AS3010-U-0100-135-S	115	18.5	13.5/74	1+5/7+9	1	ta70℃/B		●
AS3010-U-0100-150-S	115	20.5	15/67	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0100-180-S	115	24.6	18/56	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0100-240-S	115	32.8	24/42	1+5/7+9	1	ta70℃/B		●		●
AS3010-U-0100-060-D	115	2x8.2	2x6/83	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-075-D	115	2x10.3	2x7.5/67	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-090-D	115	2x12.3	2x9/56	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-120-D	115	2x16.4	2x12/42	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-150-D	115	2x20.5	2x15/33	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-180-D	115	2x24.6	2x18/28	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U-0100-240-D	115	2x32.8	2x24/21	1+5/6+7-9+10	2	ta70℃/B				●
AS3010-U2-0100-060-S	2x115	8.2	6/167	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0100-090-S	2x115	12.3	9/111	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0100-120-S	2x115	16.4	12/83	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0100-150-S	2x115	20.5	15/67	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0100-180-S	2x115	24.6	18/56	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0100-240-S	2x115	32.8	24/42	1+2-4+5/7+9	3	ta70℃/B				●
AS3010-U2-0100-060-D	2x115	2x8.2	2x6/83	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0100-090-D	2x115	2x12.3	2x9/56	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0100-120-D	2x115	2x16.4	2x12/42	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0100-150-D	2x115	2x20.5	2x15/33	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0100-180-D	2x115	2x24.6	2x18/28	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3010-U2-0100-240-D	2x115	2x32.8	2x24/21	1+2-4+5/6+7-9+10	4	ta70℃/B				●
