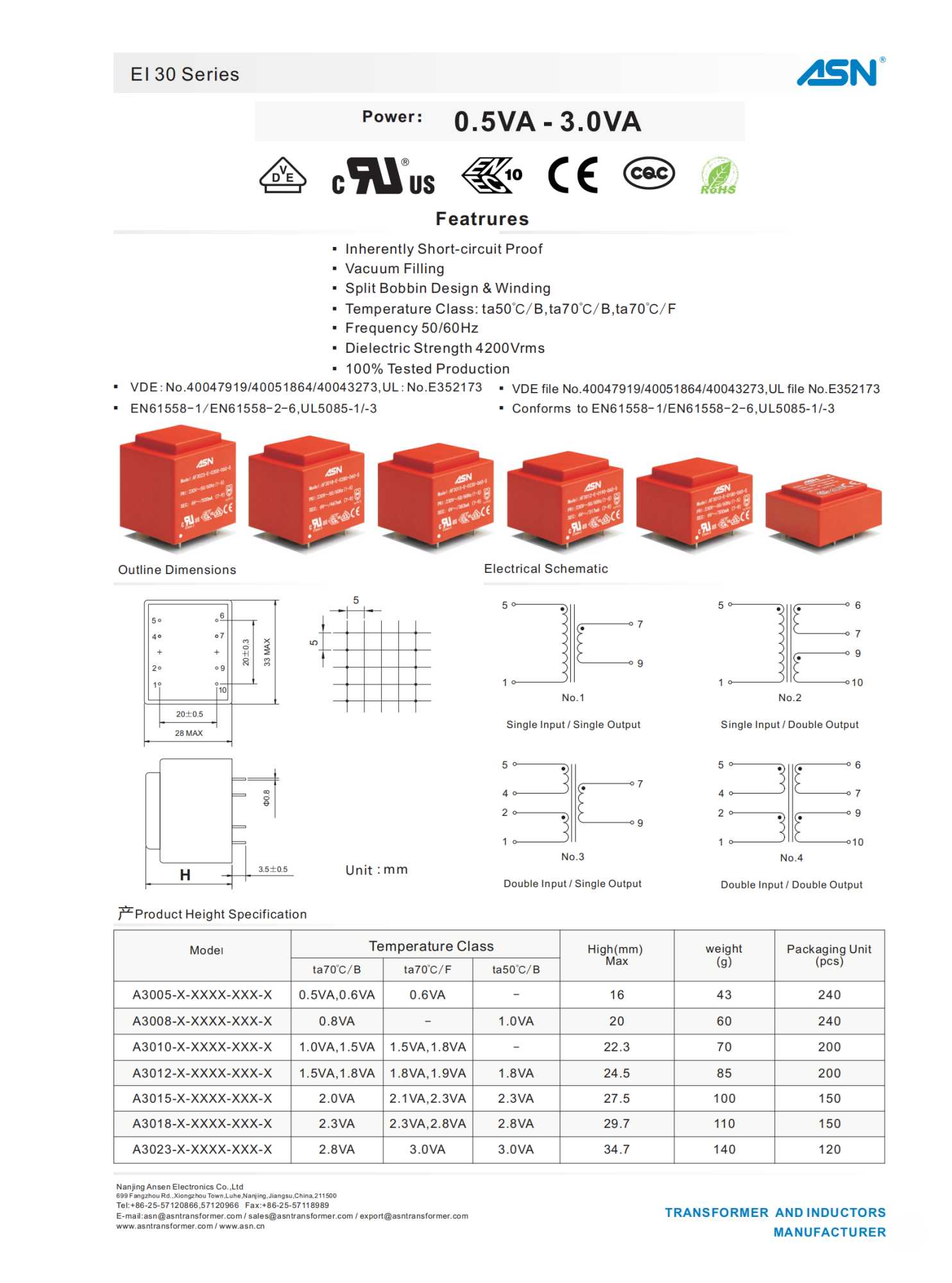

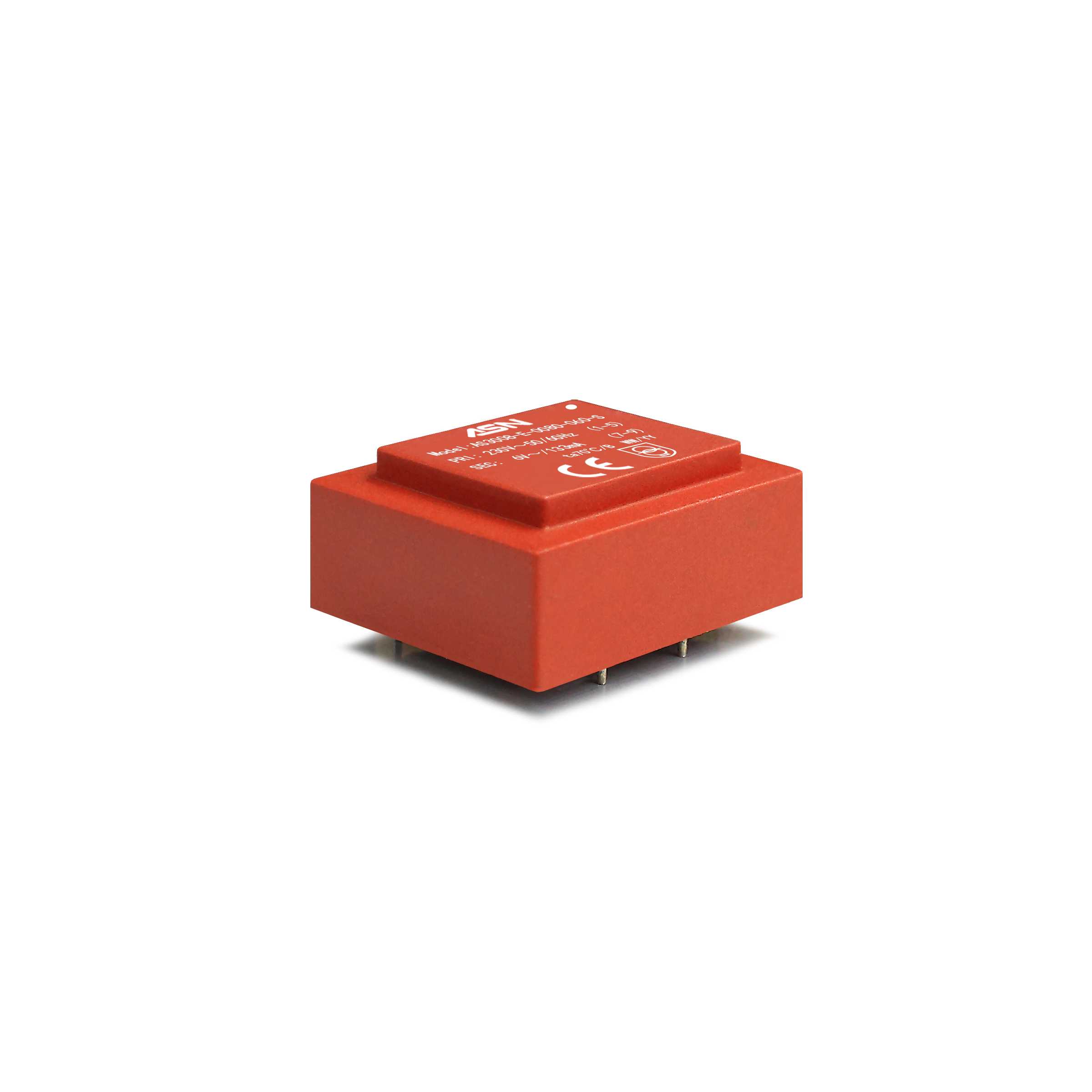

AS3008 1.0VA (TA50) Series

Power：1.0VA

Featrures

Product Parameter

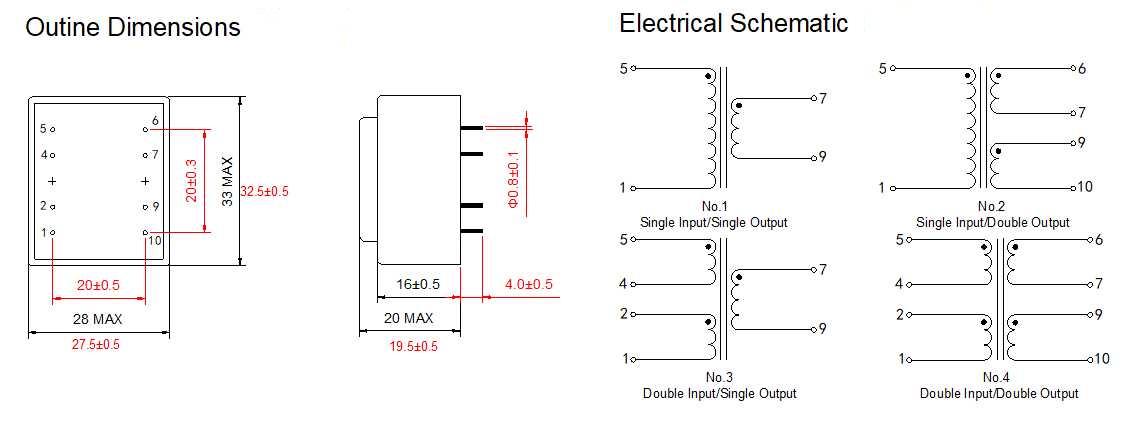

PART NO	Primary [V]	No-Load Voltage [V]	Secondary [V/mA]	Pin	Schematic No.	Temperature Class	Certificates
							Certificates
							VDE	UL	CQC	CE
AS3008-E-0100-060-S	230	9.7	6/167	1+5/7+9	1	ta50℃/B				●
AS3008-E-0100-090-S	230	14.5	9/111	1+5/7+9	1	ta50℃/B				●
AS3008-E-0100-120-S	230	20.5	12/83	1+5/7+9	1	ta50℃/B				●
AS3008-E-0100-150-S	230	24.6	15/67	1+5/7+9	1	ta50℃/B				●
AS3008-E-0100-180-S	230	28.4	18/56	1+5/7+9	1	ta50℃/B				●
AS3008-E-0100-240-S	230	37.0	24/42	1+5/7+9	1	ta50℃/B				●
AS3008-E-0100-060-D	230	2x10.1	2x6/83	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-E-0100-075-D	230	2x12.3	2x7.5/67	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-E-0100-090-D	230	2x15.6	2x9/56	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-E-0100-120-D	230	2x19.9	2x12/42	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-E-0100-150-D	230	2x23.3	2x15/33	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-E-0100-180-D	230	2x27.9	2x18/28	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-E-0100-240-D	230	2x37.2	2x24/21	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-060-S	115	9.7	6/167	1+5/7+9	1	ta50℃/B				●
AS3008-U-0100-090-S	115	14.5	9/111	1+5/7+9	1	ta50℃/B				●
AS3008-U-0100-120-S	115	20.5	12/83	1+5/7+9	1	ta50℃/B				●
AS3008-U-0100-150-S	115	24.6	15/67	1+5/7+9	1	ta50℃/B				●
AS3008-U-0100-180-S	115	28.4	18/56	1+5/7+9	1	ta50℃/B				●
AS3008-U-0100-240-S	115	37.0	24/42	1+5/7+9	1	ta50℃/B				●
AS3008-U-0100-060-D	115	2x10.1	2x6/83	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-075-D	115	2x12.3	2x7.5/67	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-090-D	115	2x15.6	2x9/56	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-120-D	115	2x19.9	2x12/42	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-150-D	115	2x23.3	2x15/33	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-180-D	115	2x27.9	2x18/28	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U-0100-240-D	115	2x37.2	2x24/21	1+5/6+7-9+10	2	ta50℃/B				●
AS3008-U2-0100-060-S	2x115	9.7	6/167	1+2-4+5/7+9	3	ta50℃/B				●
AS3008-U2-0100-090-S	2x115	14.5	9/111	1+2-4+5/7+9	3	ta50℃/B				●
AS3008-U2-0100-120-S	2x115	20.5	12/83	1+2-4+5/7+9	3	ta50℃/B				●
AS3008-U2-0100-150-S	2x115	24.6	15/67	1+2-4+5/7+9	3	ta50℃/B				●
AS3008-U2-0100-180-S	2x115	28.4	18/56	1+2-4+5/7+9	3	ta50℃/B				●
AS3008-U2-0100-240-S	2x115	37.0	24/42	1+2-4+5/7+9	3	ta50℃/B				●
AS3008-U2-0100-060-D	2x115	2x10.1	2x6/83	1+2-4+5/6+7-9+10	4	ta50℃/B				●
AS3008-U2-0100-090-D	2x115	2x15.6	2x9/56	1+2-4+5/6+7-9+10	4	ta50℃/B				●
AS3008-U2-0100-120-D	2x115	2x19.9	2x12/42	1+2-4+5/6+7-9+10	4	ta50℃/B				●
AS3008-U2-0100-150-D	2x115	2x23.3	2x15/33	1+2-4+5/6+7-9+10	4	ta50℃/B				●
AS3008-U2-0100-180-D	2x115	2x27.9	2x18/28	1+2-4+5/6+7-9+10	4	ta50℃/B				●
AS3008-U2-0100-240-D	2x115	2x37.2	2x24/21	1+2-4+5/6+7-9+10	4	ta50℃/B				●
