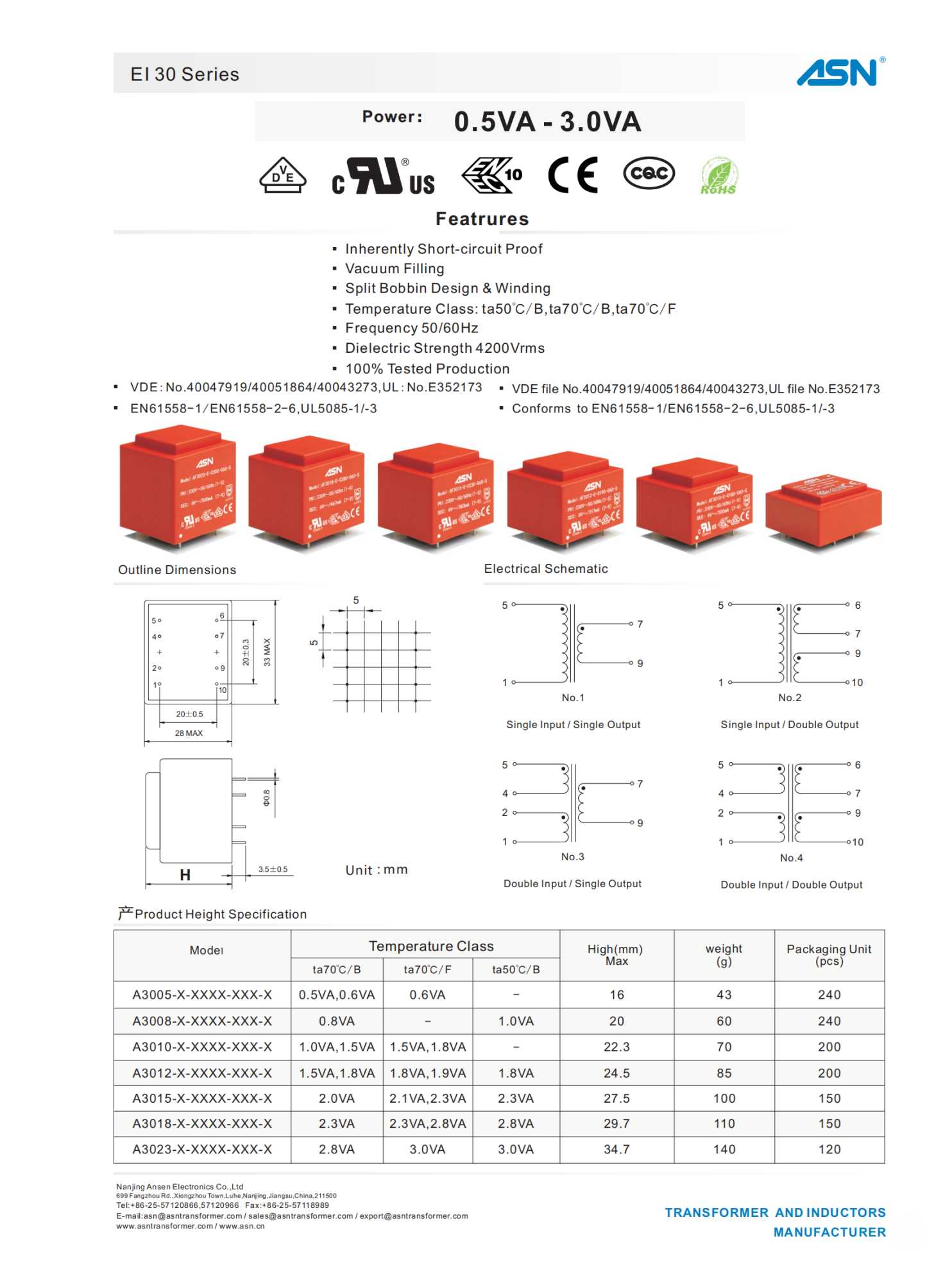

AS3005 0.6VA Series

Power：0.6VA

Featrures

Product Parameter

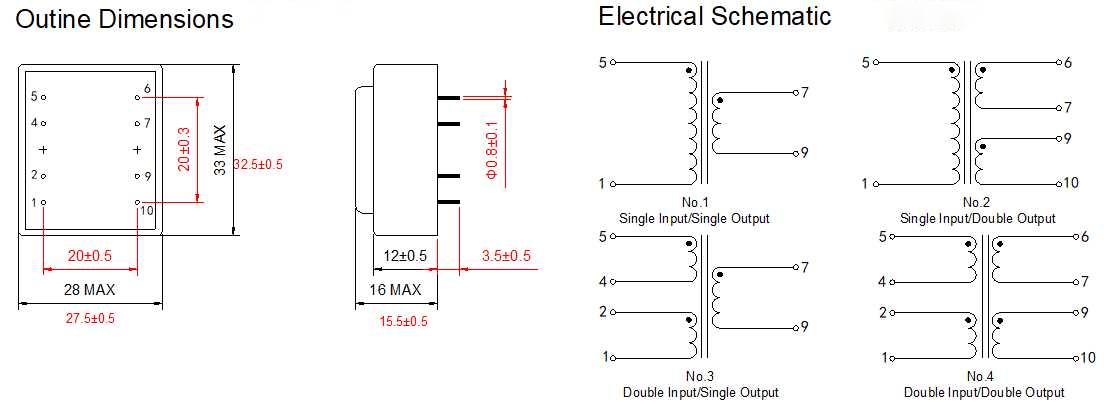

PART NO	Primary [V]	No-Load Voltage [V]	Secondary [V/mA]	Pin	Schematic No.	Temperature Class	Certificates
							Certificates
							VDE	UL	CQC	CE
AS3005-E-0060-060-S	230	9.7	6/100	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3005-E-0060-090-S	230	14.5	9/67	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3005-E-0060-120-S	230	20.5	12/50	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3005-E-0060-150-S	230	24.6	15/40	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3005-E-0060-180-S	230	28.4	18/33	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3005-E-0060-240-S	230	37.0	24/25	1+5/7+9	1	ta70℃/B	●	●	●	●
AS3005-E-0060-060-D	230	2x10.1	2x6/50	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-E-0060-075-D	230	2x12.3	2x7.5/40	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-E-0060-090-D	230	2x15.6	2x9/33	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-E-0060-120-D	230	2x19.9	2x12/25	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-E-0060-150-D	230	2x23.3	2x15/20	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-E-0060-180-D	230	2x27.9	2x18/17	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-E-0060-240-D	230	2x37.2	2x24/13	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-060-S	115	9.7	6/100	1+5/7+9	1	ta70℃/B		●		●
AS3005-U-0060-090-S	115	14.5	9/67	1+5/7+9	1	ta70℃/B		●		●
AS3005-U-0060-120-S	115	20.5	12/50	1+5/7+9	1	ta70℃/B		●	●	●
AS3005-U-0060-150-S	115	24.6	15/40	1+5/7+9	1	ta70℃/B		●		●
AS3005-U-0060-180-S	115	28.4	18/33	1+5/7+9	1	ta70℃/B		●		●
AS3005-U-0060-240-S	115	37.0	24/25	1+5/7+9	1	ta70℃/B		●		●
AS3005-U-0060-060-D	115	2x10.1	2x6/50	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-075-D	115	2x12.3	2x7.5/40	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-090-D	115	2x15.6	2x9/33	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-120-D	115	2x19.9	2x12/25	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-150-D	115	2x23.3	2x15/20	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-180-D	115	2x27.9	2x18/17	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U-0060-240-D	115	2x37.2	2x24/13	1+5/6+7-9+10	2	ta70℃/B				●
AS3005-U2-0060-060-S	2x115	9.7	6/100	1+2-4+5/7+9	3	ta70℃/B				●
AS3005-U2-0060-090-S	2x115	14.5	9/67	1+2-4+5/7+9	3	ta70℃/B				●
AS3005-U2-0060-120-S	2x115	20.5	12/50	1+2-4+5/7+9	3	ta70℃/B				●
AS3005-U2-0060-150-S	2x115	24.6	15/40	1+2-4+5/7+9	3	ta70℃/B				●
AS3005-U2-0060-180-S	2x115	28.4	18/33	1+2-4+5/7+9	3	ta70℃/B				●
AS3005-U2-0060-240-S	2x115	37.0	24/25	1+2-4+5/7+9	3	ta70℃/B				●
AS3005-U2-0060-060-D	2x115	2x10.1	2x6/50	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3005-U2-0060-090-D	2x115	2x15.6	2x9/33	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3005-U2-0060-120-D	2x115	2x19.9	2x12/25	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3005-U2-0060-150-D	2x115	2x23.3	2x15/20	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3005-U2-0060-180-D	2x115	2x27.9	2x18/17	1+2-4+5/6+7-9+10	4	ta70℃/B				●
AS3005-U2-0060-240-D	2x115	2x37.2	2x24/13	1+2-4+5/6+7-9+10	4	ta70℃/B				●
